FEATURES

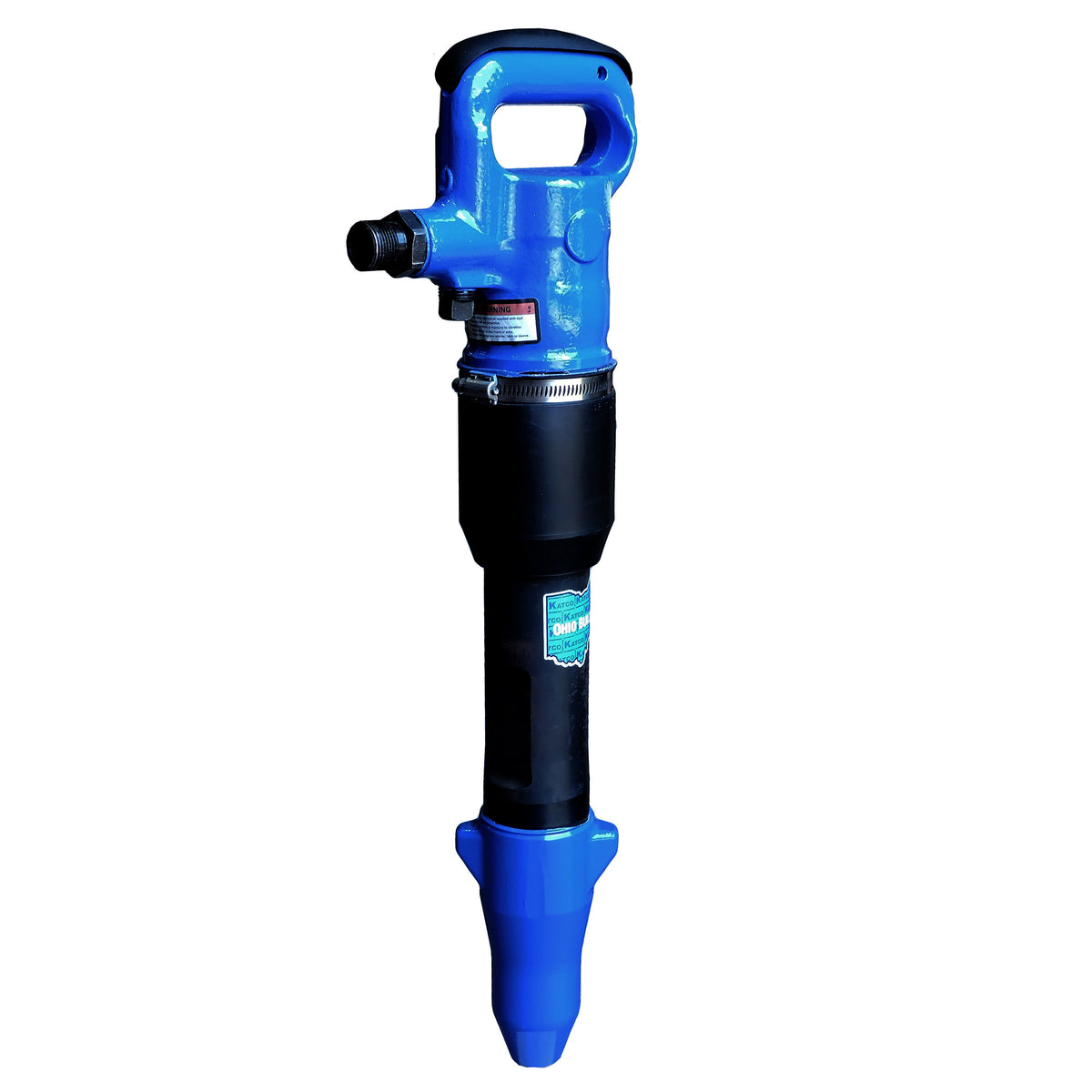

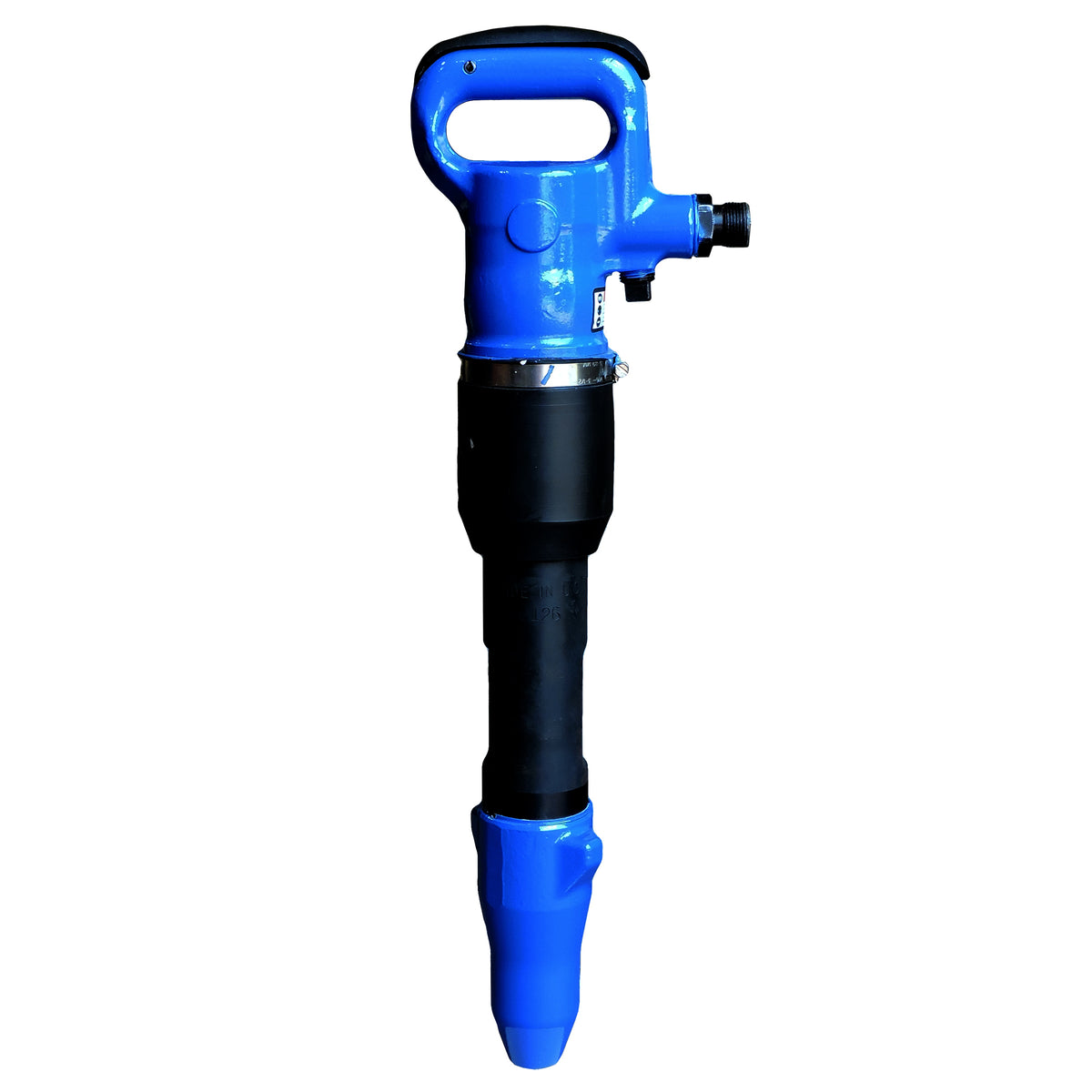

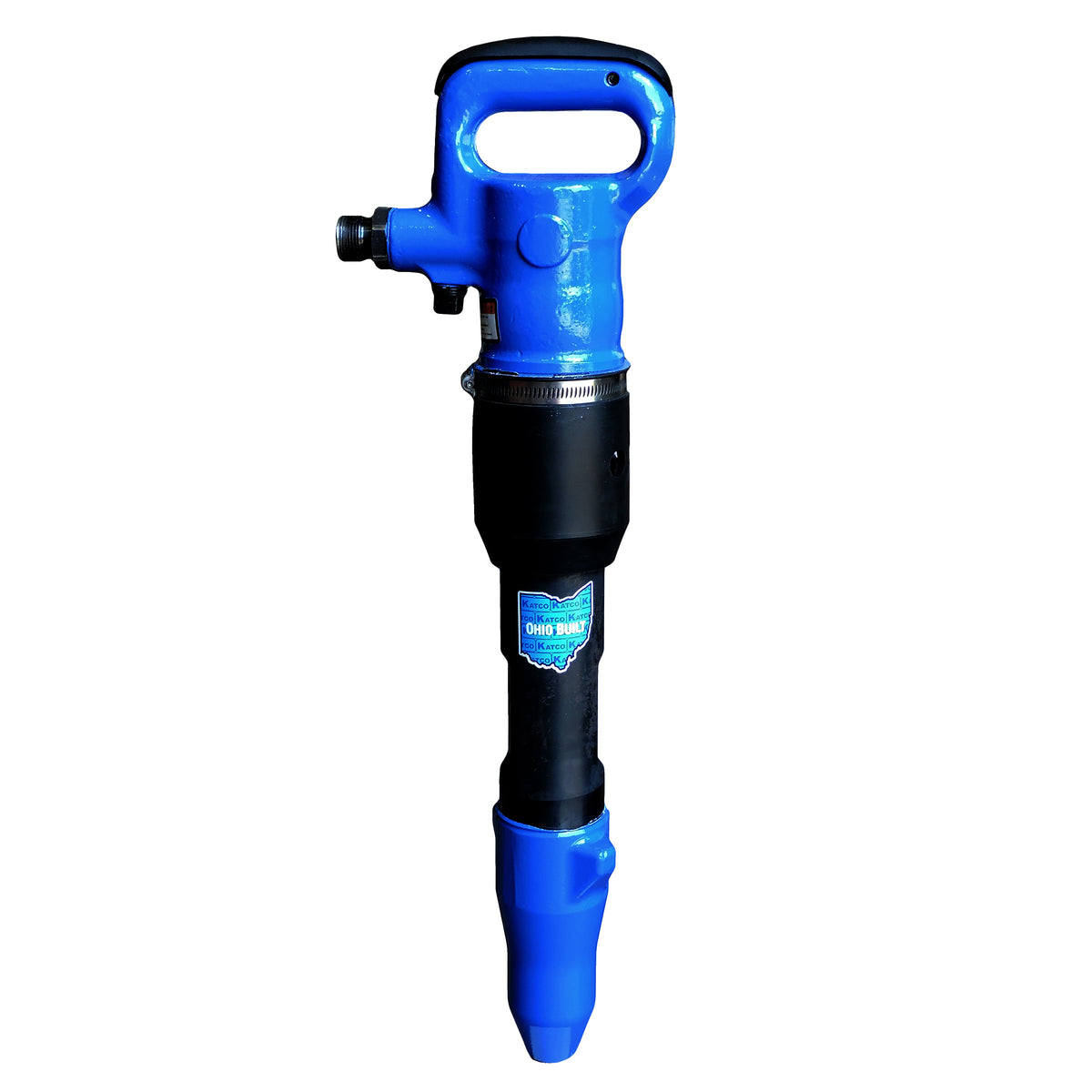

- 30 lb class Demolition Tool.
- Use this air tool for the demolition of concrete floors, pavement, masonry walls, and bridge decks.
- 7/8 x 3 1/4 inch Hex Shank
SCHEMATIC & PARTS LIST
Purchase parts for this tool: Click Here
SPECIFICATIONS
| Item Model Number | KT-DT30 DEMOLITION TOOL |
| Blows Per Minute | 1560 B.P.M. |
| Bore | 1.5625 inch (40 mm) |
| Stroke | 6.0625 inch (40 mm) |
| Net Weight | 30 lbs (13.5 kg) |
| Chuck Sizes |
7/8 X 3 1/4 inch HEX (22 X 83 mm HEX) |
| Air Inlet (NPT) | 1/2 inch (13 mm)
|
| Air Consumption* |
40 cfm (1.2 m3/m)
|
| Length | 25 Inch (635 mm) |
*Estimated
