FEATURES
- Pulls up to 1/4" (6.4mm) diameter rivets in all material types (Aluminum/Steel/Stainless Steel).
- Riveter includes 3/16" and 1/4" nose-pieces for different diameter rivets.
- Pulls structural rivets!
- Full-body aluminum construction (forged aluminum head, cast aluminum body).
- Ships in molded storage case w/ kitted accessories.
SCHEMATIC & PARTS LIST

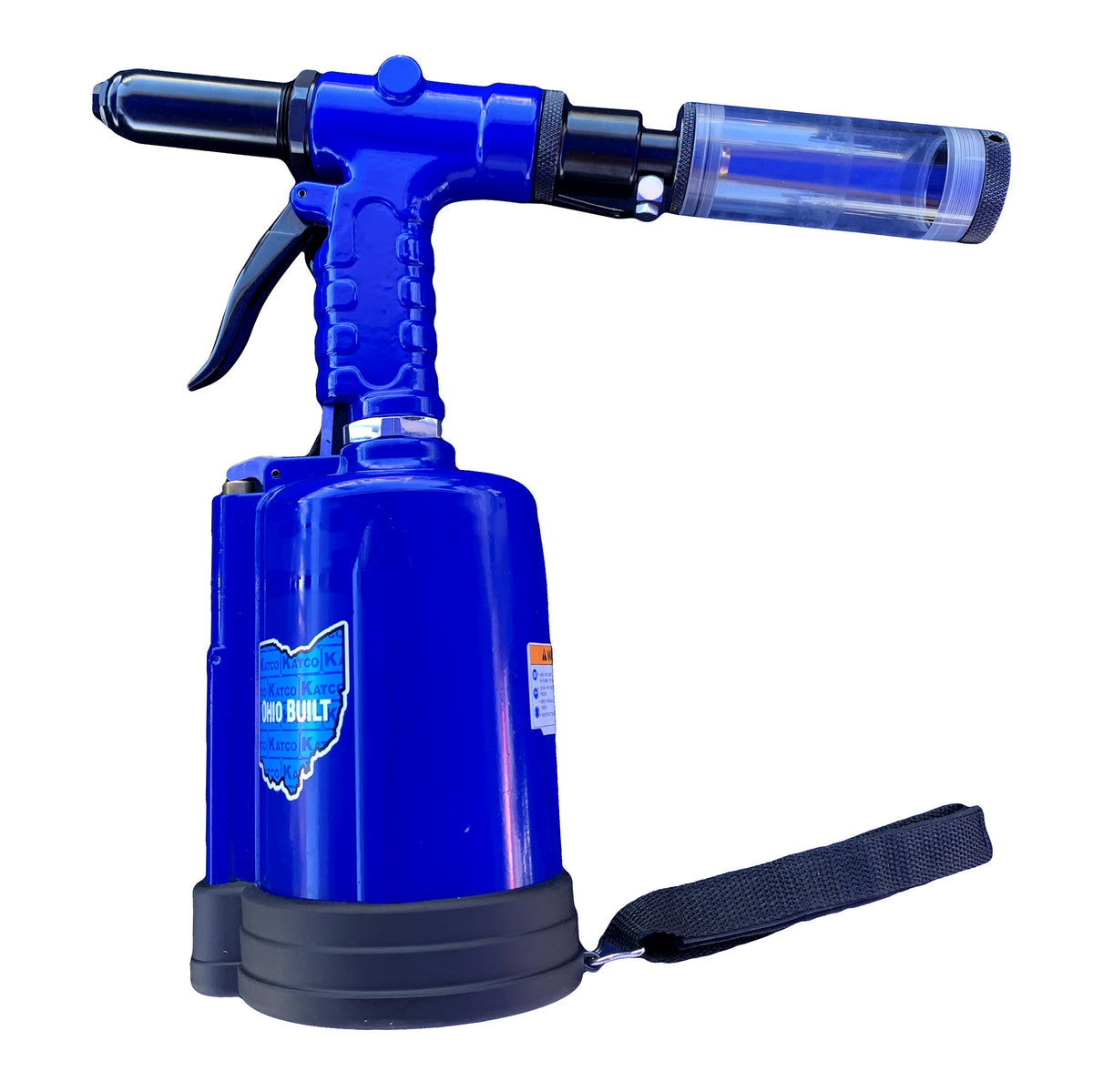

KT-R1819V Schematic:
SPECIFICATIONS
| Model Name | KT-R1819V RIVETER |
| Net Weight | 5.72 lb (2.6 kg) |
|
Traction Power |
3,960 lb (1,800 kgf) |
|
Stroke Length |
3/14" (19 mm) |
| Square Drive | 1/2" (12.7 mm) |
| Air Inlet Size | 1/4" NPT/PT |
| Min. Hose size | 3/8" (10 mm) |
| Nose-pieces Equipped for | 3/16"(4.8 mm) 1/4" (6.4 mm) |
| Operating Air Pressure | 90 psi (6.2 bar) |
TOOL CONDITION
- New
