FEATURES

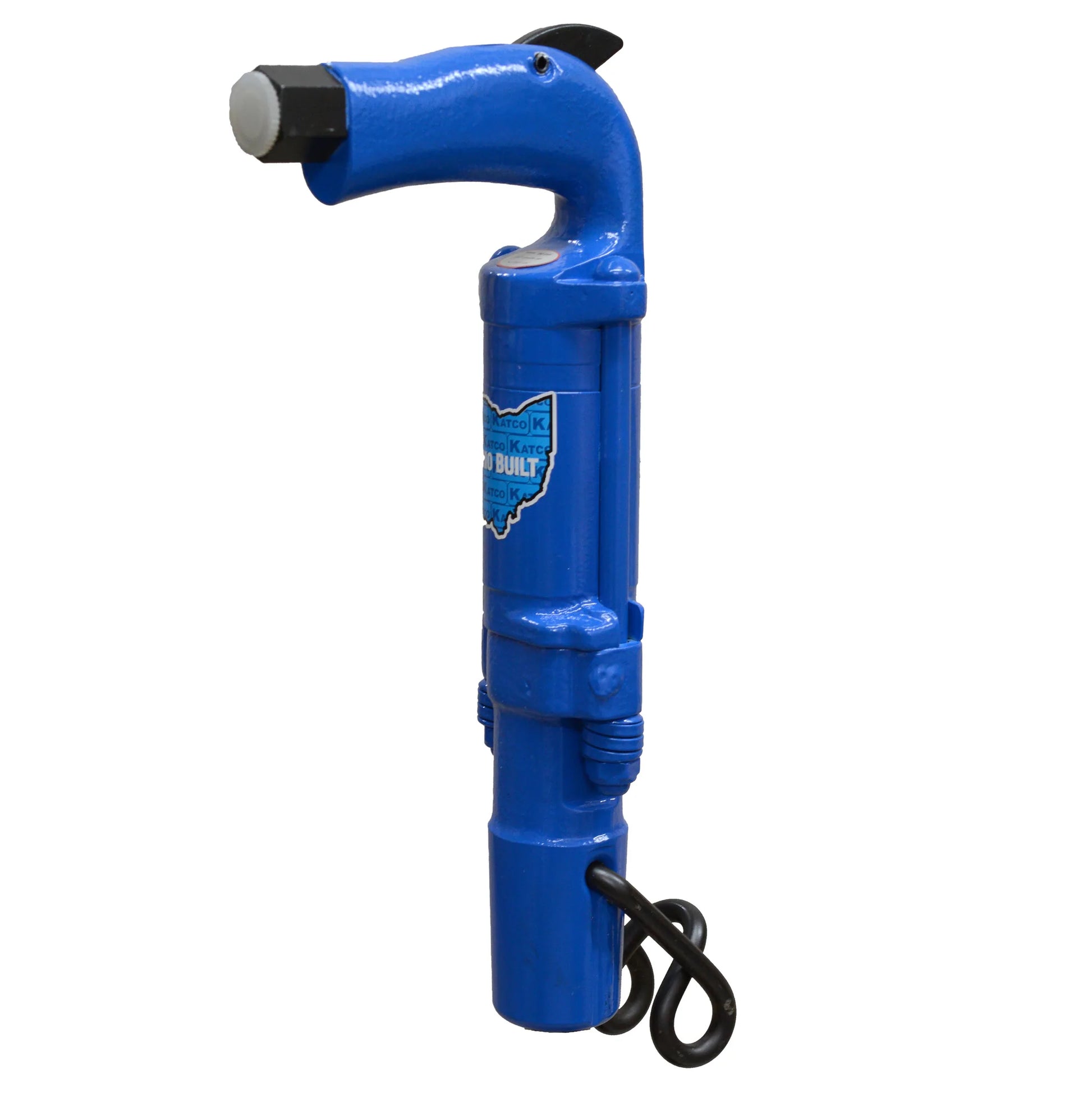

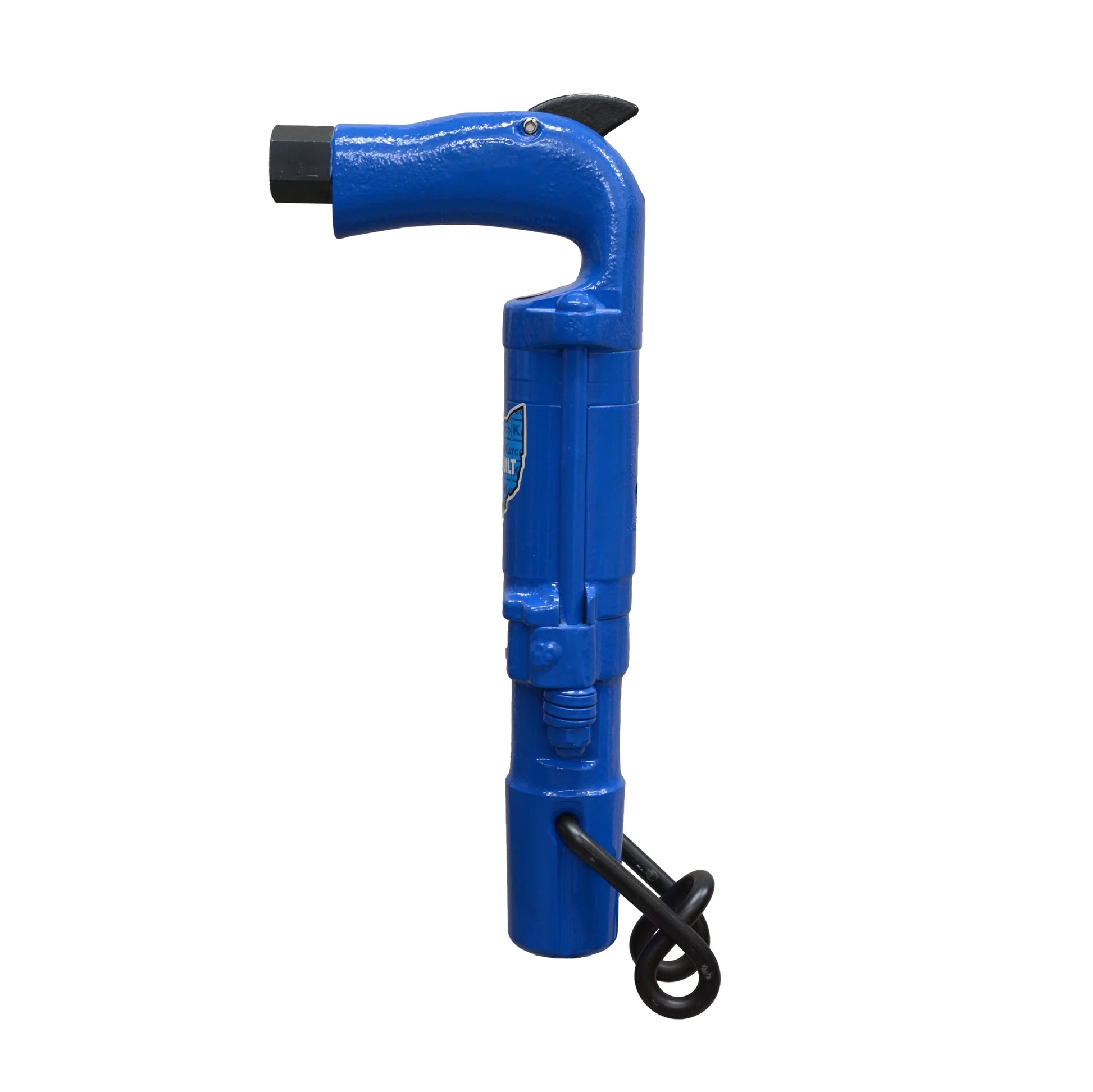

- 12 lb Class Rock Drill KIT
- KIT includes 2 Carbide speed bits: (1-5/8 wide x 9" long) & (1-7/8 wide x 9" long)
- Light-weight aluminum cast handle
- Rubber dust cover protest internal retainer parts
- Quick change ball-type retainer
SCHEMATIC
KT-RD12 Rock Drill Schematic: Click Here for PDF
SPECIFICATIONS
| Name | KT-RD12K Rock Drill Kit |
| Net Weight | 11.08 lbs (4 kg) |
| Length | 16.5 in (410 mm) |
| Bore | 1.125 in (28 mm) |
| Stroke | 2.375 in (60 mm) |
| Blows Per Minute | 2800 |
| Chuck Sizes | 3/4 x 2 in (19 x 50 mm) |
| Air Inlet (NPT) | 1/2 in NPT |
| Air Consumption* | 15.8 cfm (.45 m3/m) |
| *estimated | |
| Oil Tool | Use ISO Grade 100 Tool Oil in Breakers |
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
