FEATURES

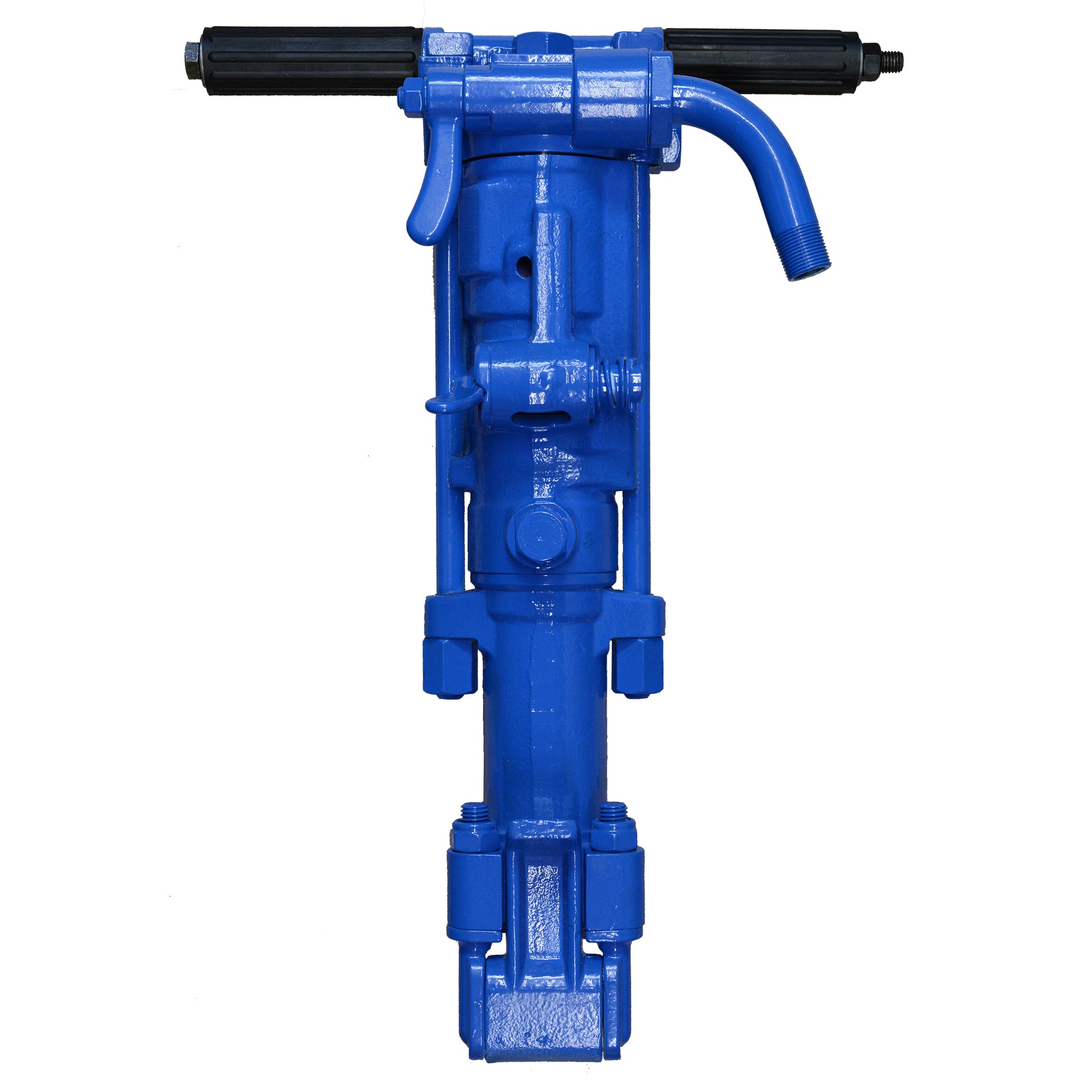

- 50 lb Class Rock Drill
SCHEMATIC & PARTS LIST
Purchase parts for this tool: Click Here
SPECIFICATIONS
| Model Number | KT-RD50 |
| Net Weight | 53 lbs (24 kg) |
| Length | 23 in (584 mm) |
| Bore | 2.64 in (67 mm) |
| Stroke | 2 in (51 mm) |
| Blows Per Minute | 1980 |
| RPM | 180 |
| Chuck Sizes | 1 x 4 1/4 in (25 x 108 mm) 7/8 x 4 1/4 in (22 x 108 mm) 7/8 x 3 1/4 in (22 x 83 mm) |
| Air Inlet (NPT) | 3/4 in (19 mm) |
| Air Consumption* | 102 cfm (48 l/m) |
| *estimated | |
| Oil Tool | Use ISO Grade 150 Tool Oil in Breakers |
*For optimal performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
