FEATURES

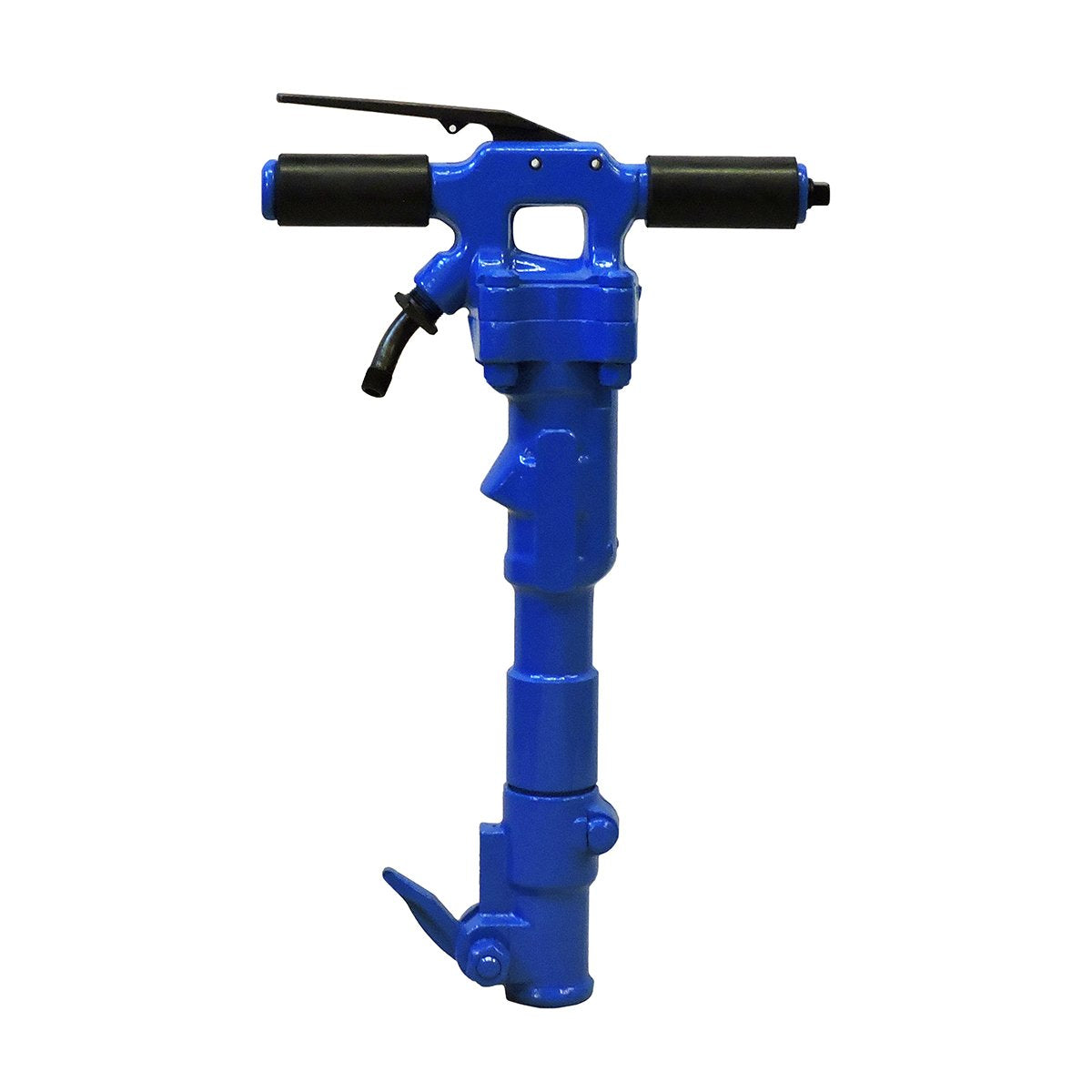

- 30 lb Class Paving Breaker.
- Used for light demolition jobs, 2-3 inch concrete sidewalks, pavement, and breaking asphalt.
- Internal oiler.
SCHEMATIC & PARTS LIST
KT-PB30 Schematic: Click Here
Purchase parts for this tool: Click Here
SPECIFICATIONS
| Model Name | KT-PB30 PAVEMENT BREAKER |
| Net Weight | 34 lbs (15 kg) |
| Length | 22.5 in (572 mm) |
| Bore | 1.75 in (44 mm) |
| Stroke | 3.375 in (86 mm) |
| Blows Per Minute | 1550 |
| Chuck Sizes | 1 x 4 1/4 in (25 x 108 mm) Round 7/8 x 3 1/4 in (22 x 83 mm) Hex |
| Air Inlet (NPT) | 3/8 in (10 mm) |
| Air Consumption* | 49 cfm (1.40 m3/m) |
| *estimated | |
| Oil Tool | Use ISO 100 Grade Tool Oil in your Breakers |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
CONDITION
- New
