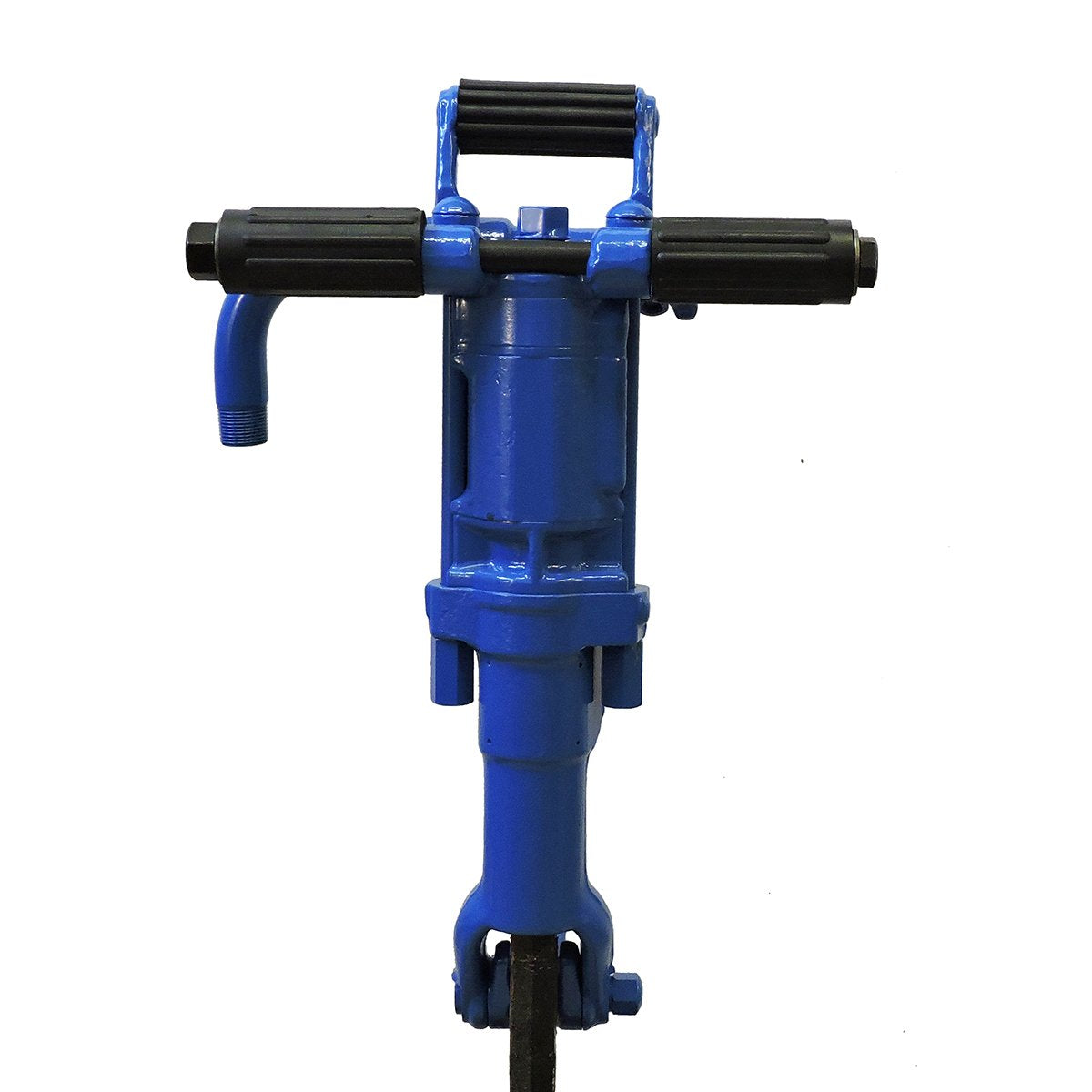

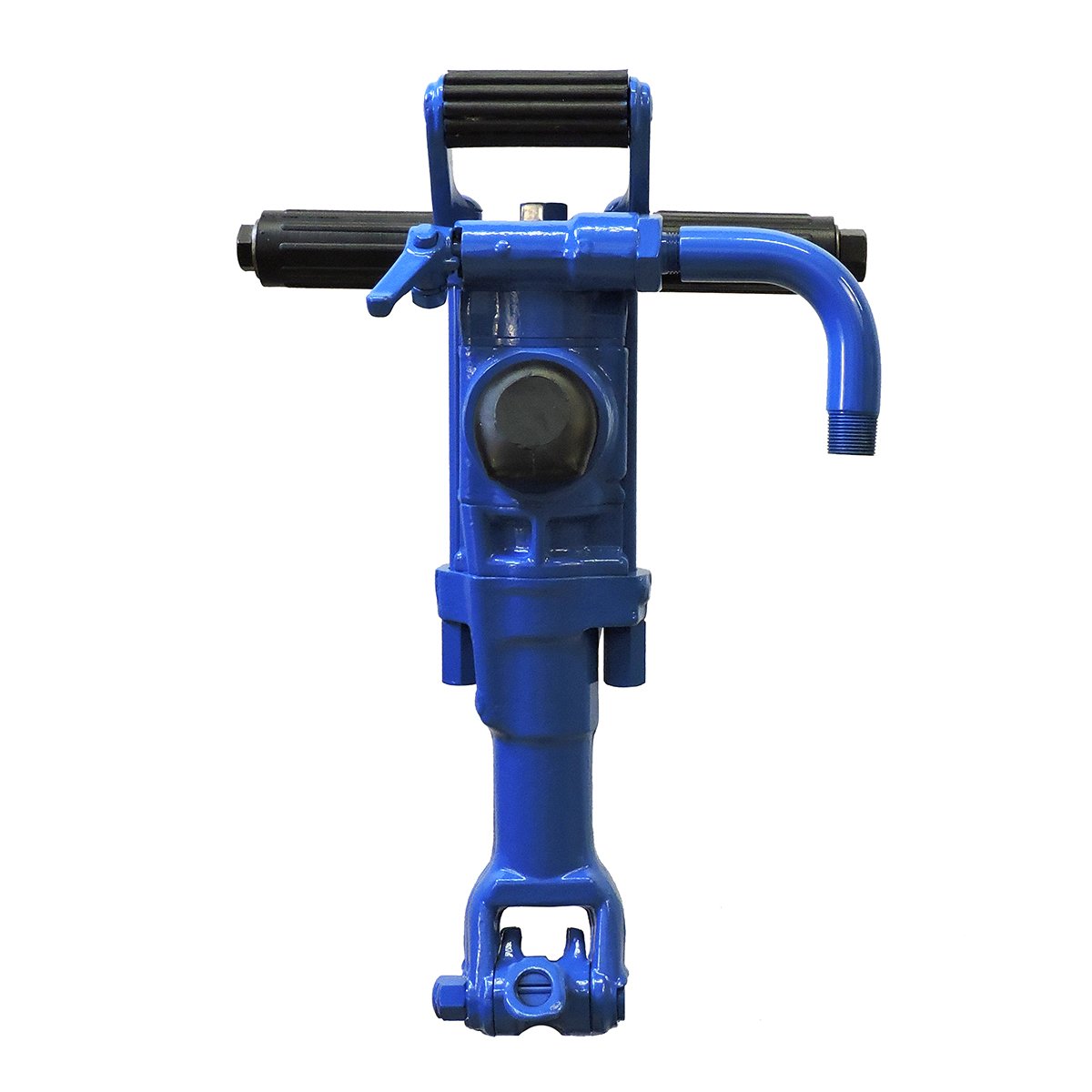

KT-RD30 ROCK DRILLL: 30 lb Class
KT-RD30 ROCK DRILLL: 30 lb Class
Regular price
$1,500.00 USD
Regular price
Sale price
$1,500.00 USD
FEATURES
- 30 lb Class Rock Drill.
SCHEMATIC & PARTS LIST
KT-RD30 Schematic: Click Here
Purchase parts for this tool: Click Here
SPECIFICATIONS
| Net Weight | 29 lbs (13 kg) |
| Length | 19.5 in (495 mm) |
| Bore | 2.4375 in (62 mm) |
| Stroke | 1.4375 in (37 mm) |
| BPM | 240 |
| Chuck Sizes | 7/8 x 4 1/4 in (22 x 108 mm) 7/8 x 3 1/4 in (22 x 83 mm) |
| Air Inlet (NPT) | 3/4 in (19 mm) |
| Air Consumption* | 73 cfm (2.10 m3/m) |
| *estimated | |
| Oil Tool | Use ISO Grade 100 Tool Oil in Breakers |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
