FEATURES

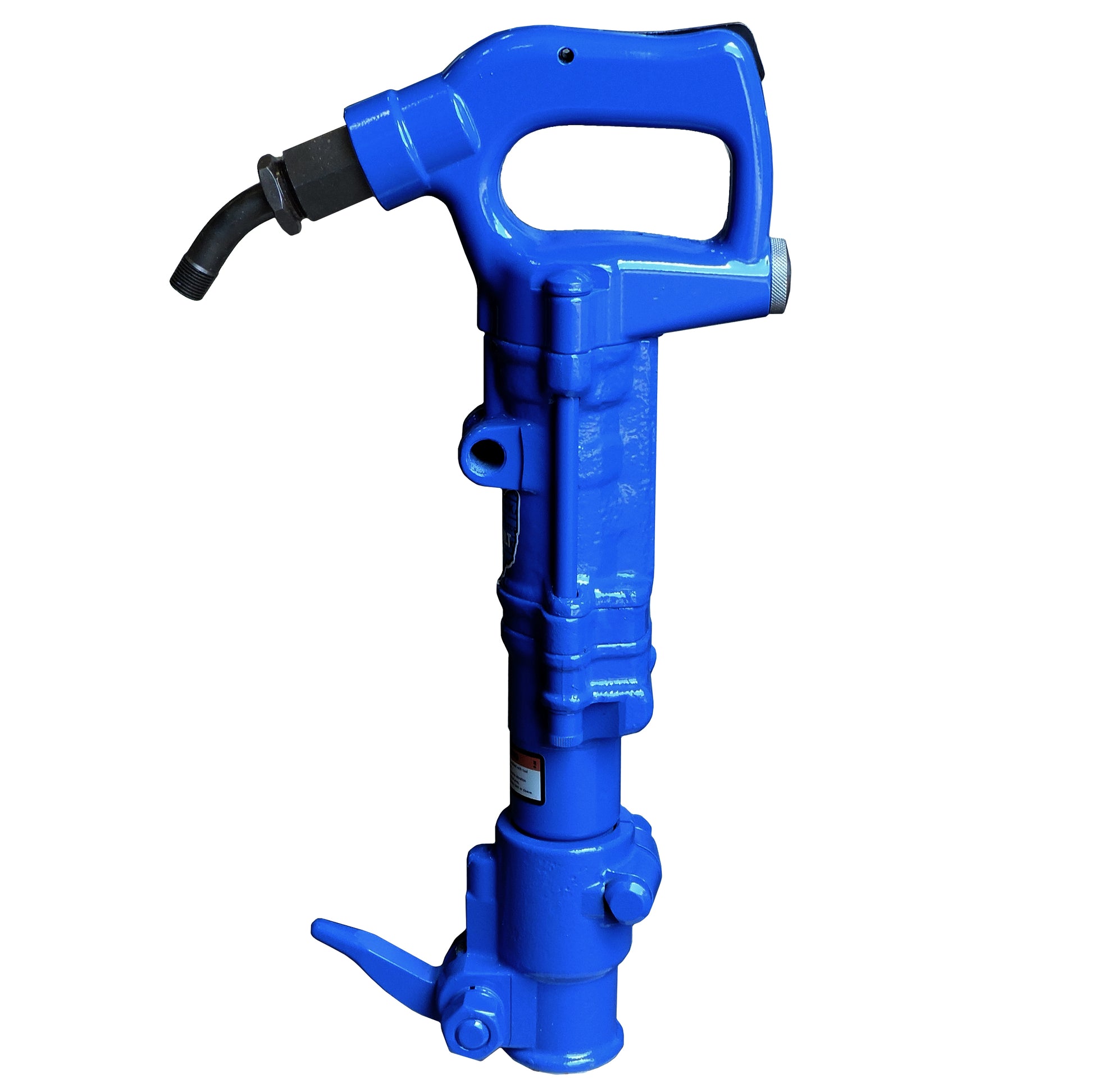

- 20 lb Class Rock Drill
SCHEMATIC & PARTS LIST
RD20 Schematic: Click Here
Purchase parts for this tool: Click Here
SPECIFICATIONS
| Item Model Name | KT-RD20 ROCK DRILL |
| Net Weight | 16.5 lbs (7.5 kg) |
| Length | 19 in (483 mm) |
| Bore | 1.9375 in (49.18 mm) |
| Stroke | 1.89 in (48 mm) |
| BPM | 2900 |
| Chuck Sizes | 7/8 x 3 1/4 in (22 x 83 mm) |
| Air Inlet (NPT) | 1/2 in (12 mm) |
| Air Consumption* | 36 cfm (1.2 m3/m) |
| *estimated | |
| Oil Tool | Use ISO Grade 100 Tool Oil in Breakers |
*For optimal performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
