FEATURES

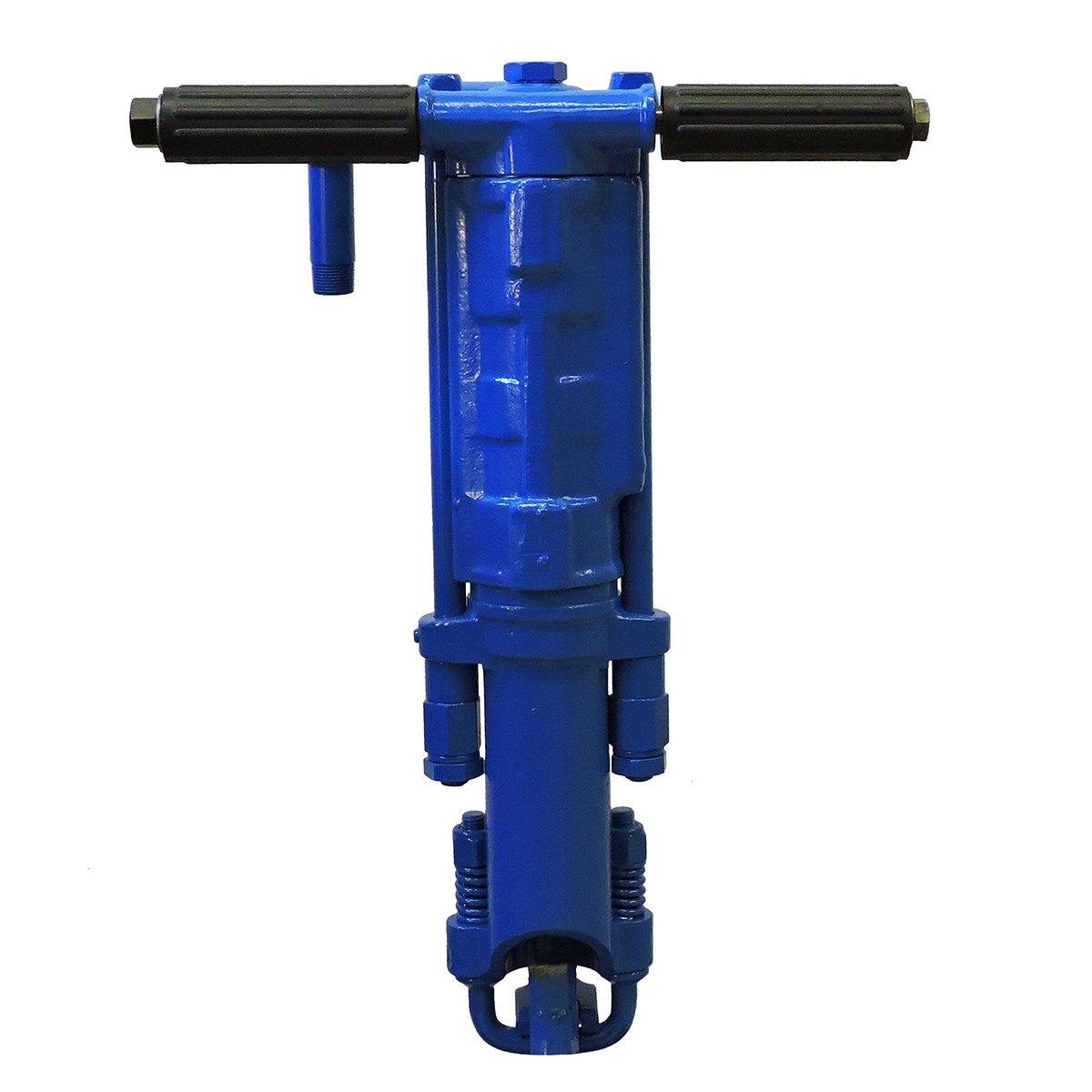

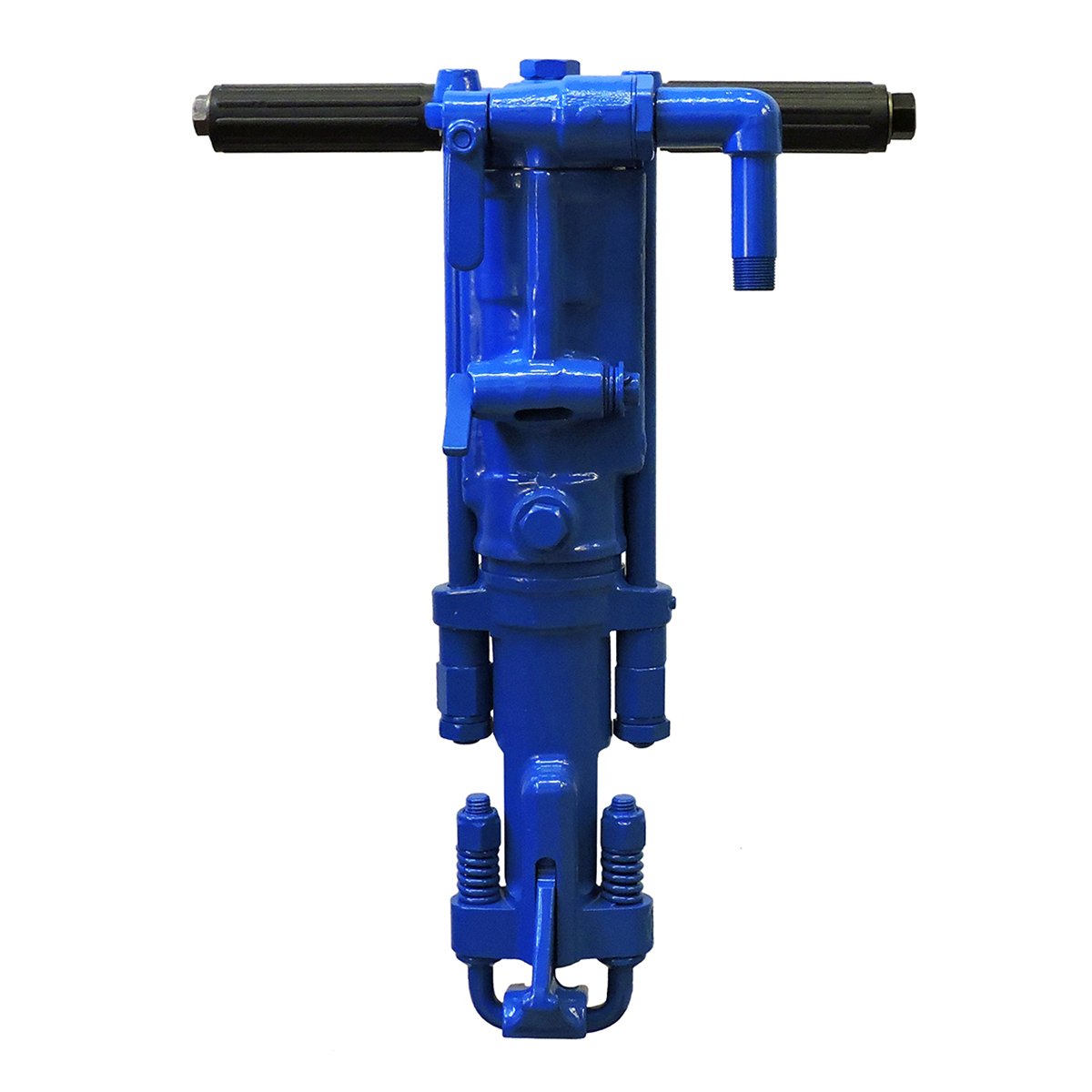

- 60 lb Class Rock Drill.
SCHEMATIC & PARTS LIST
KT-RD60 Schematic: Click Here
Purchase parts for this tool: Click Here
SPECIFICATIONS
Model Number | KT-RD60 |
Net Weight | 59 lbs (26.8 kg) |
Length | 24 in (610 mm) |
Bore | 2.625 in (67 mm) |
Stroke | 2.5625 in (65 mm) |
Blows Per Minute | 1800 |
RPM | 200 |
Chuck Sizes | 1 x 4 1/4 in (25 x 108 mm) 7/8 x 4 1/4 in (22 x 108 mm) 7/8 x 3 1/4 in (22 x 83 mm) |
Air Inlet (NPT) | 3/4 in (19 mm) |
Air Consumption* | 98 cfm (2.77 m3/m) |
*estimated | |
Oil Tool | Use ISO Grade 150 Tool Oil in Breakers |
*For optimal performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
