FEATURES

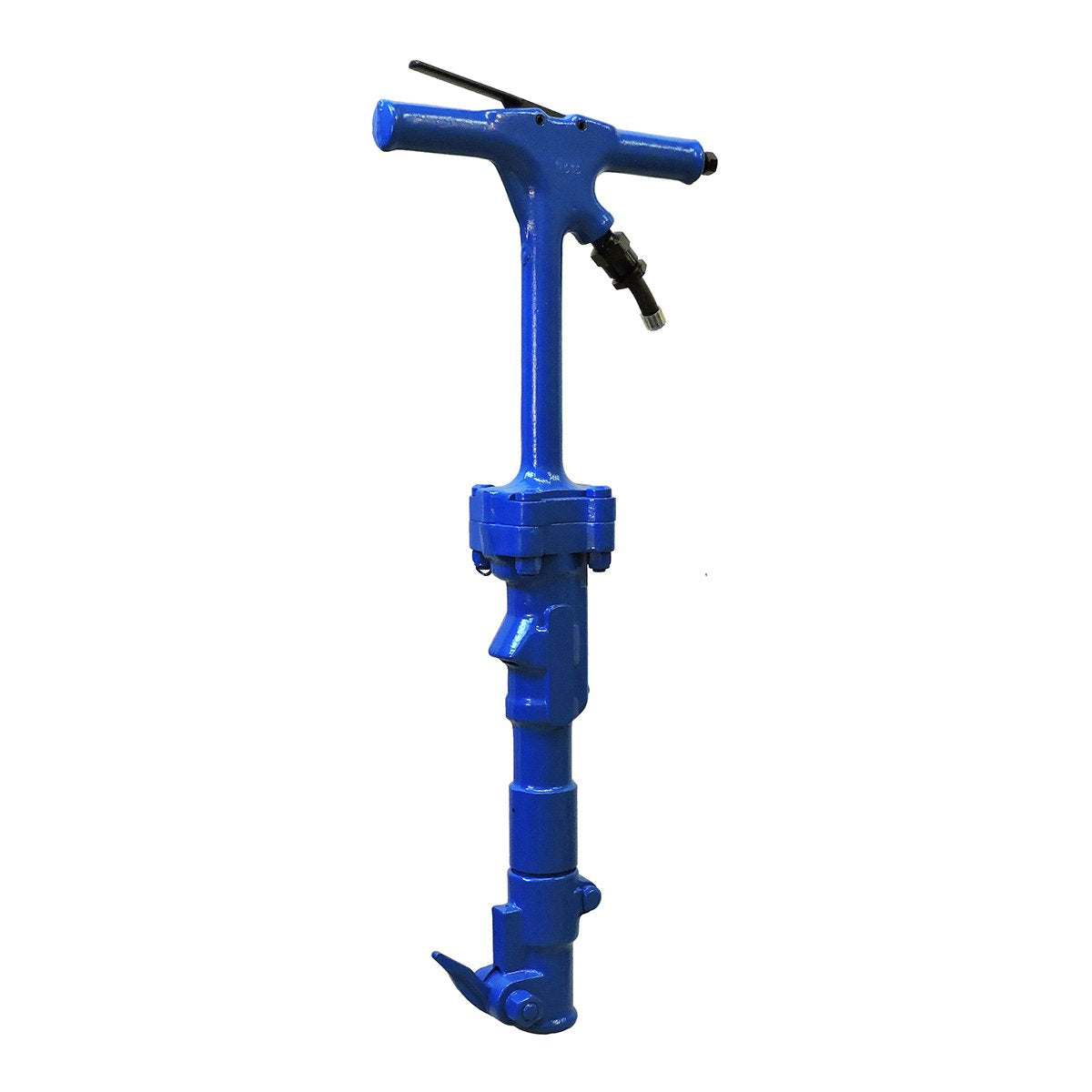

- 30 lb Class Trench Digger.
SCHEMATIC & PARTS LIST
Purchase parts for this tool: Click Here
SPECIFICATIONS
Name | KC-TD30 Trench Digger |
Net Weight | 39 lbs (39 kg) |
Length | 31in (777 mm) |
Bore | 1.6875 in (343 mm) |
Stroke | 2.75 in (70 mm) |
Blows Per Minute | 1800 |
Chuck Sizes | 7/8 x 3 1/2 in (22 x 83 mm) 1 x 4 1/4 in (25 x 108 mm) |
Air Inlet (NPT) | 3/8 in (10 mm) |
Air Consumption* | 49 cfm (1.4 m3/m) |
*estimated | |
Oil Tool | Use ISO Grade 100 Tool Oil in Breakers |
*For optimum performance, do not operate tool above 90 PSI (6 bar) working pressure.
WARNING: Always disconnect the air supply before changing chisels or dismantling the tool for service or repair. For maximum safety, we advise the installation of a shut-off valve at the end of the air line.
Do NOT exceed 100 PSI (7BAR) working pressure.
TOOL CONDITION
- New
